Square diffusers
Applications:

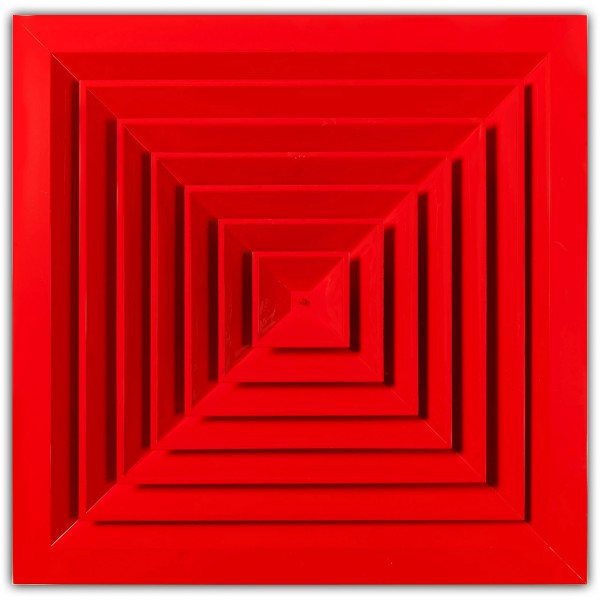

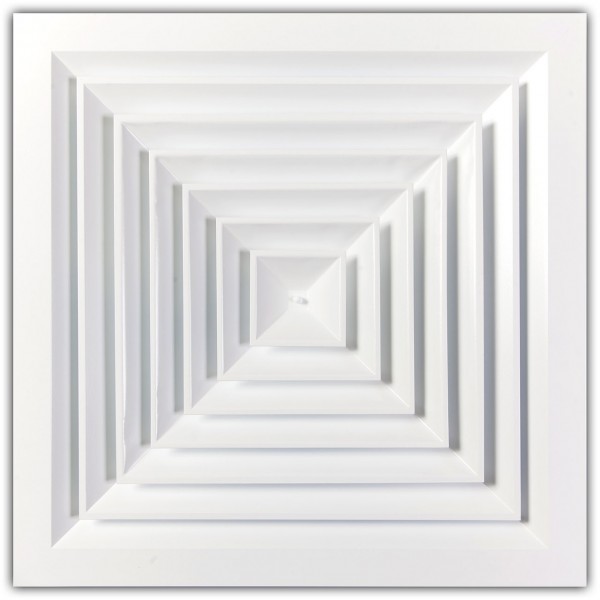

Square diffusers are ceiling diffusers with air deflection on four sides.
Description:
A standard diffuser is made of two separate, detachable elements: the frame and the central
diffuser. The latter may comprise a varying number of intermediate square, concentric frames,
it may have egg-crate perforations (with lateral and vertical deflection - for deflection at large
heights) or hybrid, a combination of the two. The central diffuser deflects air uniformly, on all
four sides, deflection angles providing air diffusion at height with large jet lengths.

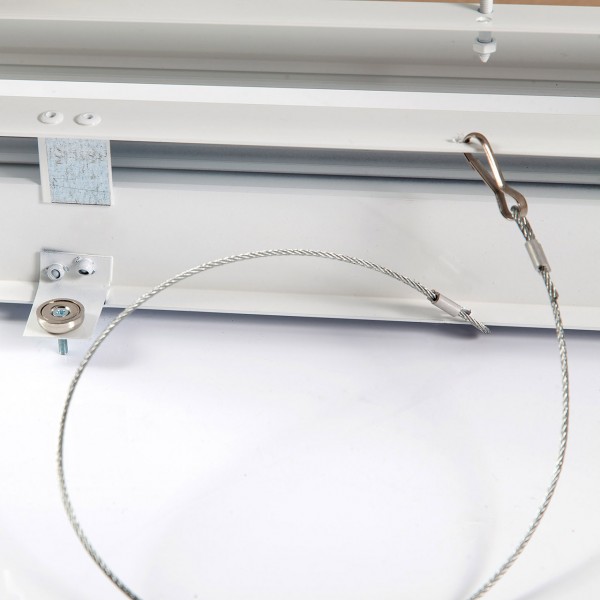

On request, the diffuser may be provided with magnetic support elements, on an
additional counter-frame that shall remain fastened to the false ceiling.
For improved adjustment of the air flowrate, the use of OBD dampers is recommended.
