Gypsum access grilles
Applications:
The gypsum access grille allows access to hidden plumbing elements (HVAC equipment, valves etc.), located in ceiling or walls, for current operation or repairs, without visibly affecting the architectural line of the surface where such elements are installed.
Description:

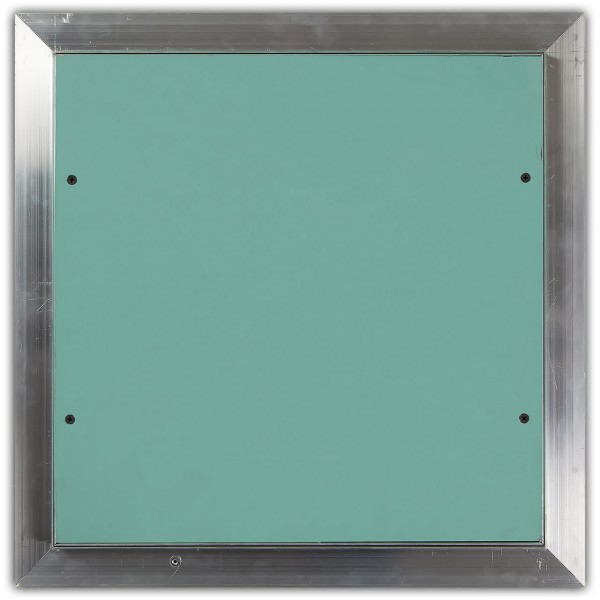

The foldable (central) part of the gypsum access grille is made of aluminum profile, without visible frame, with humidity-resistant gypsum board panel (green), 12.5 mm thickness. The fixed frame is installed behind the gypsum board panel of the wall or ceiling and it shall be fastened to their structure, allowing only the central panel to be folded, remaining suspended by the hinges and by the detachable safety system. The lock system is click-clack type (closing／opening by successive pushes). The rated sizes, set forth in the order, must be the sizes of the fixed frame, (of the cutout to be performed in wall ／ ceiling).
